Full-automatic Rotary Model
Rotary Type Egg Carton Machine

time:2018-04-21 09:47
hits:

Rotary Type Egg Box Machine Product Introduction Eggtraymachineuses waste paper as raw materials to produce different kinds of products according to your requirements, such as egg trays, egg cartons, egg boxes, apple trays, fruit trays, ind

Product Details Send Enquiry

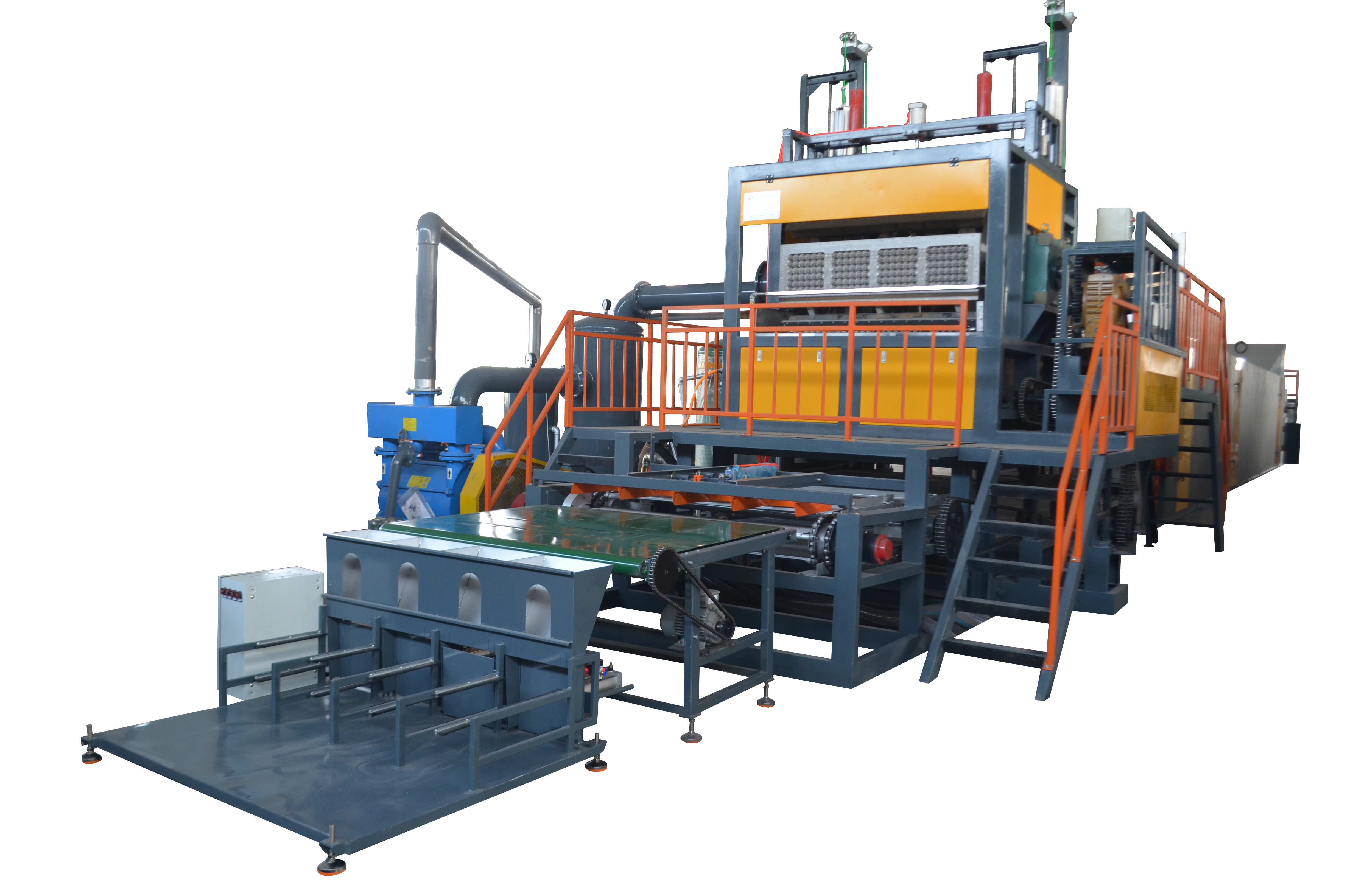

Rotary Type Egg Box Machine

Product Introduction

The specifications of the pulp molding production lines are divided due to different customer preferences, market demands, labor cost, energy cost, field availability and climate in different areas.
Considering this, our company developed many pulp molding production lines in different specifications to meet the customer’s requirements.


Automatic production line: HRZ-2000M, HRZ-3000M, HRZ-4000M, HRZ-5000M, HRZ-6000M, HRZ-8000M.

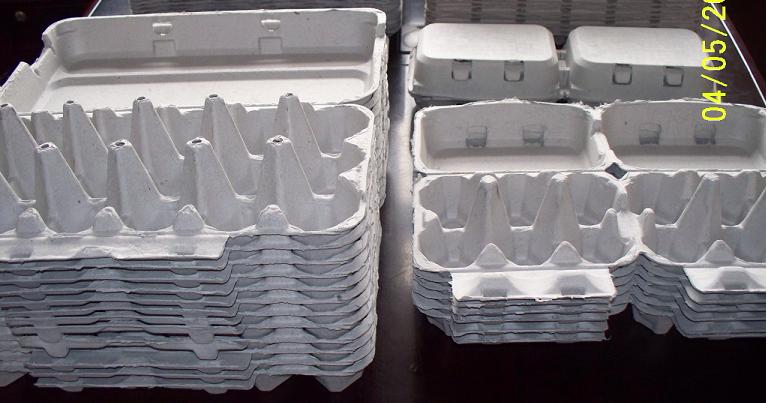

The above mentioned production lines are suitable for the following products: Egg tray(30-cell), egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell,18-cell and etc),fruit tray(for apple ,tomato,pear and etc),cup carrier(4 pack and 2 pack), some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Main parts:

1) Pulp Making System
Hydrapulper, Pulp Pump, Vibration Screen, Pulp Refiner, Agitator and so on.
2) Moulding System
Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on.
3) Drying System
Blower, Burner, Conveyer and so on.
4) Packaging System
Hot press shaping machine, Automatic stacking machine, Pressing machine, Plastic film packaging machine, Nylon pipe strapping machine and so on.

Application:



Machine Model:

Model Capacity Raw material consumption  Water consumption Workshop space Installed power (approx.)
HRZ-2000M 1500-2000pcs/h 90-180kg/h 200-400kg/h 30m*15m*6m 177 KW
HRZ-3000M 2500-3000pcs/h 150-270kg/h 330-600kg/h 35m*15m*6m 207 KW
HRZ-4000M 3500-4000pcs/h 210-360kg/h 460-800kg/h 35m*15m*6m 257 KW
HRZ-5000M 4500-5000pcs/h 270-450kg/h 600-990kg/h 35m*15m*6m 310 KW
HRZ-6000M 5500-6000pcs/h 330-540kg/h 730-1190kg/h 40m*15m*6m 362 KW
HRZ-8000M 7500-8000pcs/h 450-720kg/h 990-1600kg/h 45m*15m*6m 443 KW
