PS Foam Sheet Extrusion Machine
PS Foam Sheet Extrusion Machine

time:2017-06-26 16:47
hits:

PS Foam Sheet Extrusion Machine Product Introduction PS Foam Sheet Extrusion Line adopts Gentian type double-stage series high foam technology. The raw material is general polystyrene granule. In the extruding process, vesicant is injected

Product Details Send Enquiry

PS Foam Sheet Extrusion Machine

Product Introduction

PS Foam Sheet Extrusion Line adopts Gentian type double-stage series high foam technology. The raw material is general polystyrene granule. In the extruding process, vesicant is injected at high pressure. After extruding, foaming, cooling, shaping and hauling off, it is winding to finished PS foam sheet rolls. After vacuum forming system, the finished PS foaming sheet can be made into variety of packaging vessels such as fast food box ,aquatic plate, supermarket tray ,cake tray , KT board ,instant noodle bowl ,foam tray etc. It is widely used in the packing for food, fruit, and advertising industrial products and so on. This equipment adopts high speed hydraulic filter changer which has steady feature, can realize change the filter immediately without stopping the machine. The foaming shaping machine adopts PLC control, touch screen operation, easily to operate.

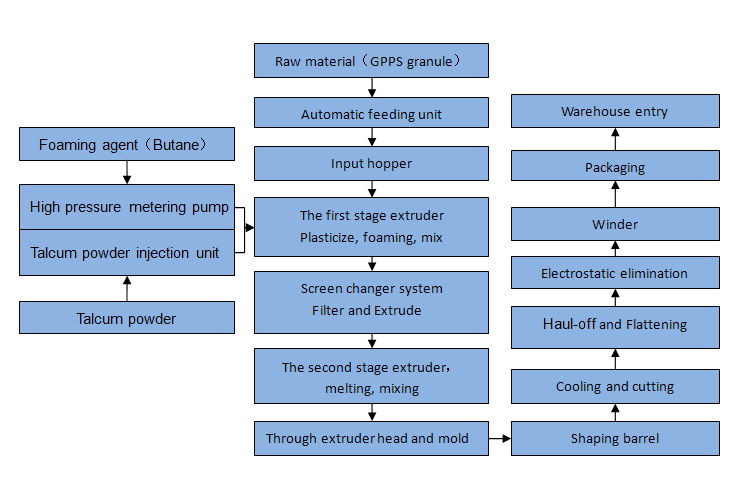

Flow chart

Technical parameter

Model HR-70/90 HR-105/120 HR-120/150
Screw Diameter Φ70/90 Φ105/120 Φ120/150
Foam Rate 10-20 10-20 10-20
Width of Product (mm) 640-1040 640-1040 640-1040
Thickness of Product (mm) 1.0-3.0 1.0-3.5 1.0-3.5
Output (kg/h) 50-90 100-180 230-320
Cooling Mode Cooling by Wind and Water
Mounted Power(kw) 120 180 280
Overall Size(m) 22*4.0*2.8 24*4.1*2.8 26*4.2*3
Total Weight (T) 10 12 15
